The Metallurgy and Physics of Subterranean Defense: A Comprehensive Comparison of Foundation Protection
Compare foundation waterproofing the subterranean portion of a structure exists in a state of perpetual environmental hostility. Unlike the roof or the exterior cladding, which face intermittent weather events, a foundation is encased in a medium that exerts constant hydrostatic pressure, chemical erosion, and thermal expansion. Consequently, the mitigation of moisture infiltration is not merely an aesthetic concern but a fundamental requirement for structural longevity. When we analyze the integrity of a building, the success of the below-grade waterproofing system dictates the fate of the entire asset.
Historically, the industry has suffered from a fragmented understanding of moisture management. Property owners and developers often view waterproofing as a single product—a bucket of sealant or a roll of membrane—rather than a multi-layered hydrologic assembly. This reductionist view overlooks the interplay between soil mechanics, concrete porosity, and mechanical drainage. To achieve a dry interior environment, one must move beyond “plugging leaks” toward an integrated strategy that addresses water in all its forms: liquid, vapor, and capillary rise.
As building codes become more stringent and the costs of structural remediation soar, the need for a rigorous comparative analysis of waterproofing methodologies has never been more urgent. This article provides a definitive exploration of the technical and economic variables involved in modern foundation protection. By examining the physics of water diversion and the chemical properties of modern materials, we provide a framework for making informed, high-stakes decisions regarding the building’s most critical interface with the earth.
Compare Foundation Waterproofing
When engineers and architects compare foundation waterproofing methods, they are rarely looking for the “best” material in a vacuum; they are searching for the most appropriate response to a specific site’s hydrologic load. The comparison is multidimensional, involving a careful balance of elasticity, chemical resistance, and ease of installation. A common misunderstanding is that all waterproofing serves the same purpose. In reality, there is a stark divide between “damp-proofing,” which merely retards vapor transmission, and “waterproofing,” which is engineered to withstand the crushing weight of a high water table.
To effectively compare these systems, one must evaluate them across several vectors: crack-bridging ability, hydrostatic resistance, and lifespan. For instance, a liquid-applied membrane offers the advantage of being seamless, making it ideal for foundations with complex geometries or numerous utility penetrations. Conversely, sheet membranes provide a factory-controlled thickness that eliminates the risk of human error during application, though they introduce potential failure points at every seam.
The risk of oversimplification in this comparative process is significant. Many homeowners compare options based solely on upfront cost per square foot, failing to account for the “total cost of ownership.” A low-cost bituminous spray may appear attractive during construction, but if it lacks the elasticity to bridge the inevitable settling cracks of a new foundation, the resulting repair costs—involving excavation, landscaping removal, and interior remediation—will dwarf the initial savings by several orders of magnitude.
Deep Contextual Background: From Pitch to Polymers
Compare foundation waterproofing the history of keeping foundations dry is a narrative of increasing chemical sophistication. In the early 20th century, the “cellar” was a damp, utilitarian space. Protection was rudimentary, often consisting of thick stone walls and perhaps a layer of coal-tar pitch. These materials were effective at blocking liquid water but were brittle and environmentally toxic. As the basement evolved into a high-value living space, the tolerance for moisture dropped to zero, necessitating a leap in material science.
The post-war era introduced the “French drain”—a perforated pipe system that lowered the water table around the footing. This shifted the philosophy from “blocking” water to “redirecting” it. In the 1970s and 80s, the introduction of polymer-modified bitumen provided the elasticity required for modern concrete foundations. We are now in an era of “active” waterproofing, where materials like crystalline admixtures and bentonite clay respond dynamically to the presence of water, effectively “healing” breaches as they occur.
Conceptual Frameworks and Mental Models Compare Foundation Waterproofing
-
The Hydrostatic Head Relief Model: This framework posits that any barrier will eventually fail if the pressure behind it is high enough. Therefore, the “best” waterproofing is actually a drainage system that prevents pressure from building in the first place.
-
The Envelope Continuity Framework: A waterproofing system is only as strong as its weakest transition. This model focuses on “detailing”—the junctions where the wall meets the footing, or where a pipe pierces the membrane.
-
The Permeability Spectrum: Understanding that concrete is a porous, breathable material. This model helps decide whether a system should be “vapor open” to allow the wall to dry or “vapor closed” to block all moisture entirely.
Key Categories and Material Variations
To accurately compare foundation waterproofing options, we must categorize them by their physical state and application method.
Realistic Decision Logic

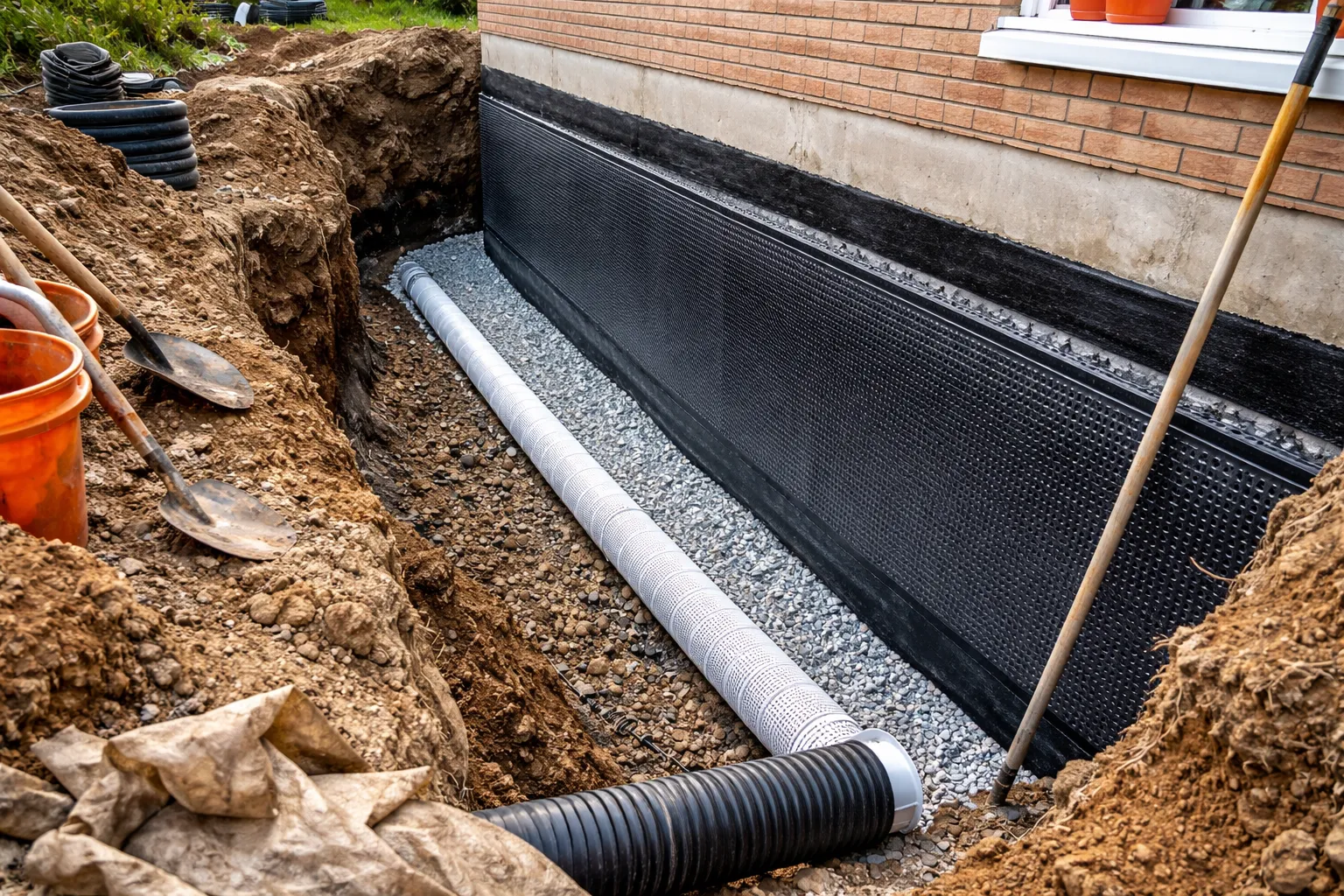

If the soil is heavy clay with poor drainage, the decision logic dictates a “Hybrid System.” This involves a primary fluid-applied membrane for a seamless seal, protected by a dimpled drainage board to move water away quickly. In sandy soils where water drains naturally, a high-quality sheet membrane may be sufficient on its own.
Detailed Real-World Scenarios Compare Foundation Waterproofing
Scenario A: The Urban In-fill A new foundation is poured within inches of an existing structure. External excavation is impossible.
-
Solution: Blind-side waterproofing. An HDPE sheet is pinned to the shoring before the concrete is poured, creating a permanent bond as the concrete cures.
Scenario B: The High-Water Table Coastal Build The foundation is constantly submerged in brackish water.
-
Solution: Crystalline admixture combined with an external rubberized membrane. This provides “belt and suspenders” protection against both liquid water and chemical chloride attack.
Scenario C: The Retrofit of a Historic Fieldstone Foundation The stones are uneven and porous; external excavation is cost-prohibitive.
-
Solution: Internal “drainage track” management. Rather than stopping the water, it is collected at the base of the wall and directed to a sump pump, paired with a vapor-retardant wall liner.
Planning, Cost, and Resource Dynamics
The economics of waterproofing are defined by the “Excavation Premium.” The cost of the material itself is often less than 15% of the total project invoice.
Opportunity Cost: Choosing to save $5,000 on a new build by opting for damp-proofing instead of waterproofing can lead to a $40,000 repair bill a decade later when the basement is finished and begins to leak.
Tools, Strategies, and Support Systems Compare Foundation Waterproofing
-
Waterstops: Specialized strips placed in the “cold joint” where the footing meets the wall.
-
Termination Bars: Mechanical fasteners that prevent the top edge of a membrane from sagging.
-
Hydrostatic Pressure Relief Valves: Floor-mounted valves that allow water in only when pressure reaches dangerous levels, preventing the floor from buckling.
-
Sump Pump Redundancy: A primary AC pump and a battery-operated secondary pump.
-
Laser Grading: Ensuring the soil slopes away from the foundation at a minimum 5% grade.
-
Filter Geotextiles: Wrapping the drainage gravel to prevent silt from clogging the system.
Risk Landscape and Failure Modes
The primary risk in waterproofing is “Mechanical Breach.” This occurs when sharp rocks in the backfill puncture the membrane, or when the building settles more than the material’s “elongation percentage” allows.
Taxonomy of Failure:
-
Adhesion Failure: The membrane peels away because the concrete was too wet or dusty during application.
-
Thermal Stress: Rapid temperature changes cause the concrete to move, tearing a non-elastic coating.
-
Chemical Degradation: Contaminants in the soil (like fertilizers or oils) eat through the polymer barrier.
Governance, Maintenance, and Long-Term Adaptation Compare Foundation Waterproofing
A foundation protection plan is not a “one-time” event. It requires governance:
-
Annual Audit: Checking for “ponding” water near the foundation after heavy rains.
-
Sump Monitoring: Testing the “float switch” on the evacuation pump every six months.
Measurement, Tracking, and Evaluation
-
Leading Indicators: Rising relative humidity (RH) in the basement or the appearance of “efflorescence” (white salt powder) on the walls.
-
Lagging Indicators: Visible standing water, mold growth on baseboards, or a musty odor.
-
Quantitative Signal: A sump pump that suddenly begins cycling twice as often as usual, indicating a change in the local water table or a failure of the exterior drainage plane.
Common Misconceptions Compare Foundation Waterproofing
-
“New concrete is waterproof”: False. Concrete is a sponge that wicks water through capillary action.
-
“Tar is enough”: Tar is a vapor retarder, not a water barrier. It will fail under hydrostatic pressure.
-
“I can waterproof from the inside”: You can manage water from the inside, but you can only waterproof (stop the water from entering the wall) from the outside.
-
“French drains last forever”: They eventually clog with silt or roots and require “hydro-jetting” or replacement.
Synthesis and Final Editorial Judgment
To compare foundation waterproofing is to acknowledge the inevitability of environmental pressure. The most authoritative approach is one of “Defensive Redundancy.” A single membrane, no matter how advanced, is vulnerable to human error during installation or mechanical stress during backfilling. The definitive strategy for long-term organic stability of a structure involves a high-performance elastomeric membrane, a dimpled drainage plane to relieve hydrostatic head, and a robust mechanical evacuation system. Intellectual honesty in building science dictates that we stop looking for a “miracle coating” and start building resilient, multi-layered hydrologic defenses.
