The Architectural Integrity of Below-Grade Waterproofing: A Comprehensive Analysis

Top foundation waterproofing plans the structural health of any edifice is irrevocably tied to the performance of its foundation, a component that exists in a state of perpetual conflict with subterranean moisture. In the realm of building science, foundation waterproofing is not merely a localized protective coating but a complex hydrologic management system. It encompasses the mitigation of hydrostatic pressure, the management of soil-borne vapor, and the structural resilience of the substrate against chemical and thermal stresses. To overlook the nuance of these systems is to invite a slow but definitive degradation of the building’s primary load-bearing assembly.

Modern engineering has moved beyond the rudimentary application of bituminous “damp-proofing,” which only resists liquid water in its non-pressurized state. Today, the focus has shifted toward high-performance membranes and integrated drainage planes that can withstand the significant tonnage of saturated backfill. This evolution reflects a broader understanding of the basement or crawlspace as a conditioned part of the building envelope, rather than a sacrificial damp utility zone. Consequently, the selection of a protection strategy must account for local geology, water table fluctuations, and the specific chemical profile of the surrounding soil.

Establishing a dry subterranean environment requires a pivot from reactive maintenance to an integrated architectural plan. This necessitates a rigorous evaluation of various technical approaches, ranging from crystalline admixtures to sophisticated dimpled membrane assemblies. By treating the foundation as a dynamic interface between the structure and the earth, property owners and architects can ensure that the building’s subterranean footprint remains a stable, dry, and permanent asset.

Top Foundation Waterproofing Plans

When analyzing top foundation waterproofing plans, the focus is often prematurely placed on the material itself—be it rubberized asphalt or bentonite clay. However, a superior plan is characterized by its “systemic redundancy” rather than its primary chemical component. A definitive plan must address three distinct vectors of moisture: liquid water under hydrostatic pressure, capillary rise through the footing, and water vapor diffusing through the concrete matrix.

The oversimplification of these plans often leads to a failure in distinguishing between damp-proofing and waterproofing. Damp-proofing is a thin coating intended only to stop vapor transmission in dry soils; waterproofing is designed to bridge structural cracks and resist the crushing weight of a high water table. Most “budget” plans fail because they apply a damp-proofing solution to a waterproofing problem. High-authority plans, by contrast, incorporate a “drainage plane”—an air gap or porous layer that allows water to fall freely to the weeping tile before it can exert pressure on the foundation wall.

Furthermore, the risk of over-reliance on a single product cannot be overstated. A high-performance membrane is only as effective as the “termination bar” that secures it at the grade line and the “waterstop” that seals the cold joint between the footing and the wall. In the context of building longevity, the most successful plans are those that assume the primary membrane will eventually face a stressor and therefore build in secondary drainage and evacuation routes to mitigate that stress.

Deep Contextual Background: From Pitch to Polymers

Top foundation waterproofing plans historically, foundations were protected by mass and gravity. Thick stone walls were expected to take on some moisture, which would then evaporate into the unconditioned cellar. As basements became “finished” living spaces, the industry moved toward coal-tar pitch coatings. These were effective but brittle, often cracking as the house settled. The 1970s and 80s saw the introduction of polymer-modified bitumen, which offered better elasticity.

In the 21st century, the industry has branched into “active” and “passive” systems. Passive systems, like peel-and-stick membranes, provide a static barrier. Active systems, such as crystalline waterproofing, involve chemicals that react with incoming moisture to grow crystals within the concrete’s pores, effectively turning the concrete itself into a waterproof barrier. This historical shift represents a move toward biological and chemical integration with the building material itself.

Conceptual Frameworks and Mental Models Top Foundation Waterproofing Plans

To evaluate the efficacy of a waterproofing strategy, one must apply these three frameworks:

1. The Hydrostatic Pressure Gradient: This model treats the foundation as a dam. The goal of any plan is not just to be “thick,” but to reduce the pressure behind the wall. By using gravel backfill and drainage boards, you effectively lower the “head pressure” of the water.

2. The Continuity Principle: A waterproofing system is only as strong as its weakest transition. This framework requires that the roof-line drainage, the grade-level flashing, and the subterranean membrane form a continuous “shingle effect” that never allows water to find an edge.

3. Capillary Break Theory: Concrete is a hard sponge. This model focuses on the “footing-to-wall” joint. Without a capillary break (a fluid-applied or sheet-based membrane between the footing and the wall), water can be sucked upward into the structure regardless of how well the exterior walls are coated.

Key Categories of Waterproofing Variations

Selecting from the top foundation waterproofing plans requires a trade-off analysis between cost, durability, and soil compatibility.

Realistic Decision Logic

If the building site is characterized by high-clay soil and a frequent “freeze-thaw” cycle, a fluid-applied membrane reinforced with a dimpled drainage board is often the superior choice. The fluid-applied layer provides a seamless seal against the clay’s moisture, while the dimpled board protects the membrane from the mechanical stress of expanding and contracting soil.

Detailed Real-World Scenarios Top Foundation Waterproofing Plans

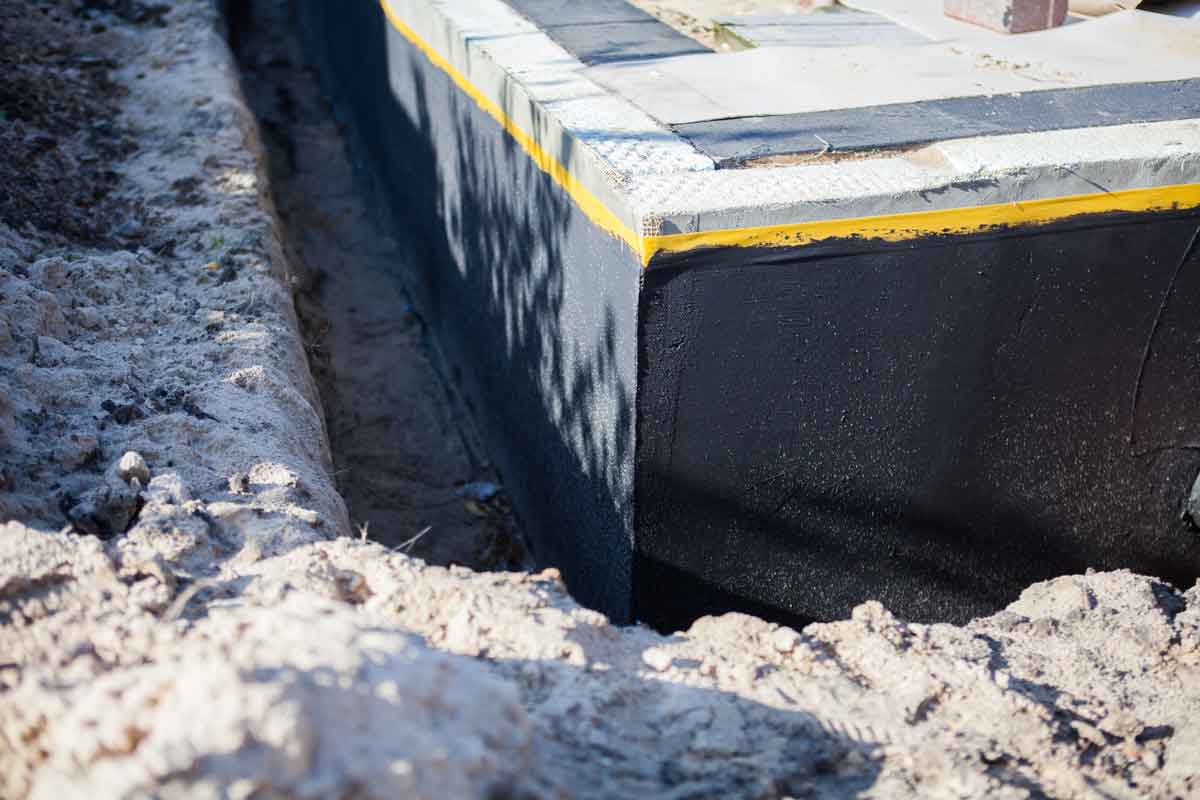

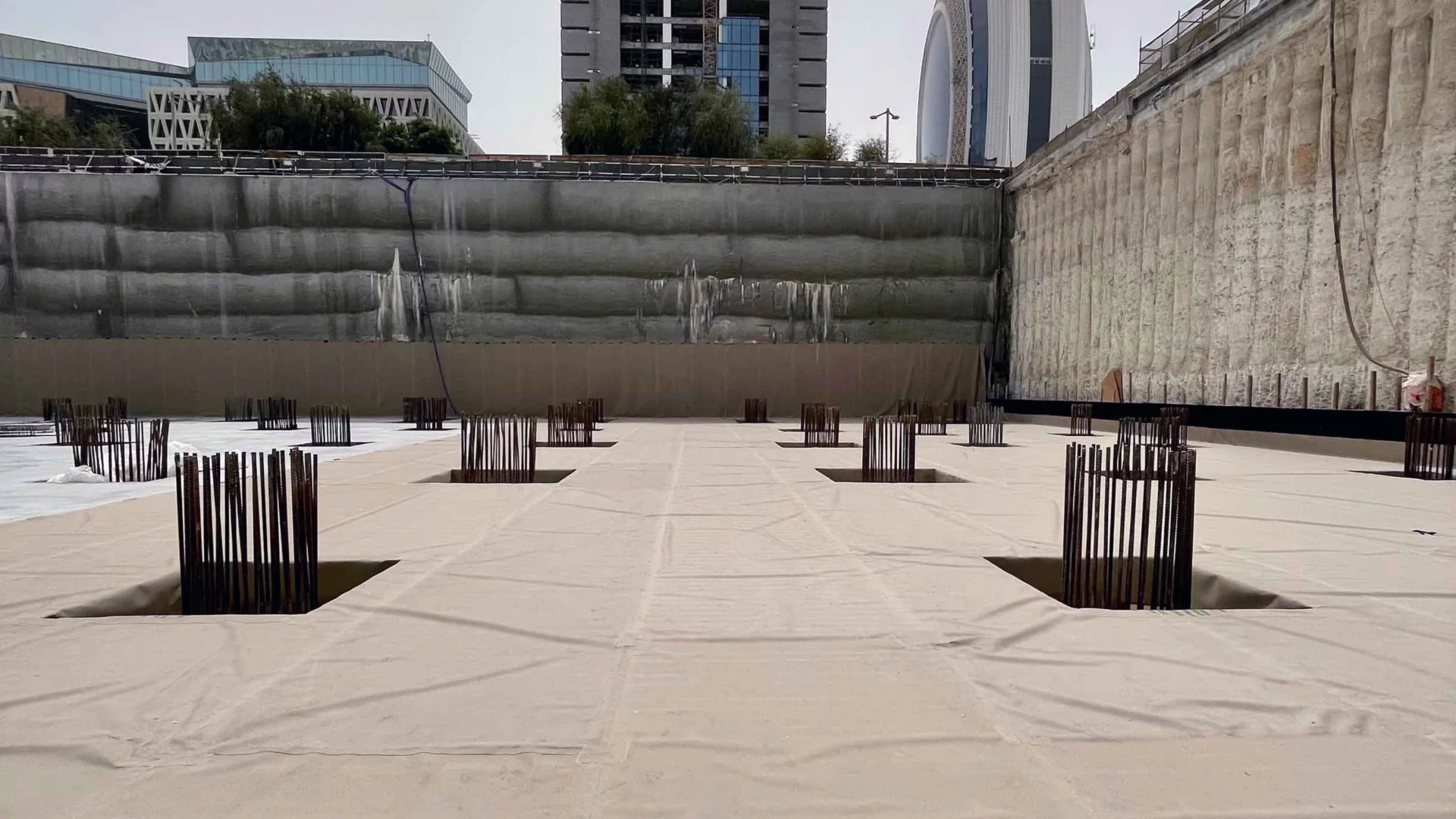

Scenario A: The Urban In-fill Project A new structure is built within inches of an existing foundation. Conventional excavation for exterior waterproofing is impossible.

• Plan: A “blind-side” waterproofing strategy using a HDPE sheet membrane installed against the shoring wall before the concrete is poured. The concrete bonds directly to the membrane.

Scenario B: The High-Water Table Coastal Build The foundation is perpetually partially submerged.

• Plan: A dual-layer system featuring a crystalline admixture in the concrete mix for internal protection, paired with a heavy-gauge, fully-adhered bituminous sheet on the exterior.

Scenario C: The Retrofit of a Historic Fieldstone Foundation Exterior excavation is too risky for the structural stability of the stones.

• Plan: An internal “drainage track” system. Instead of stopping the water, the plan directs it through an interior perimeter drain to a high-capacity sump pump, combined with a vapor-retardant wall liner.

Planning, Cost, and Resource Dynamics Top Foundation Waterproofing Plans

The economics of waterproofing are heavily weighted toward “front-end” investment. The cost to repair a failed foundation membrane 10 years after construction is typically 10 to 20 times the cost of the initial installation due to the necessity of excavation and landscaping restoration.

Variability Note: Costs fluctuate based on the depth of the foundation. A “walk-out” basement requires less material but more complex transition detailing at the grade changes.

Tools, Strategies, and Support Systems

1. Termination Bars: Aluminum strips that mechanically fasten the top of a membrane to prevent it from sagging over time.

2. Waterstops: Expandable bentonite or PVC strips placed in the cold joints of the concrete pour.

3. Filter Fabric: Non-woven geotextile that prevents soil fines from clogging the French drain.

4. Sump Pump Redundancy: A primary AC pump paired with a battery-backed secondary pump.

5. Laser Levels: Critical for ensuring the weeping tile has a consistent 1/8-inch per foot slope.

6. Soil Compactors: Ensuring backfill doesn’t settle and pull the membrane away from the wall.

Risk Landscape and Failure Modes Top Foundation Waterproofing Plans

The primary failure in most top foundation waterproofing plans is not the material, but the “transition.”

• The “Window Well” Bypass: Water collecting in window wells can exert localized pressure that bypasses the wall membrane.

• The Grade-Line Breach: If the waterproofing ends exactly at the soil line, “splash-back” from rain can get behind the membrane, trapping water against the wall.

Governance, Maintenance, and Long-Term Adaptation

A foundation is a “set it and forget it” system in theory, but in practice, it requires “external governance.”

• Annual Grade Audit: Ensure that the soil has not settled near the foundation, creating a “negative slope” that directs water toward the wall.

• Vegetation Management: Large trees with “thirsty” roots can create localized soil shrinkage, causing the foundation to shift and the membrane to tear.

Measurement, Tracking, and Evaluation

• Relative Humidity (RH) Monitoring: Using hygrometers in the basement to track if moisture levels stay below 50%. A spike in RH often precedes a visible leak.

• Visual Efflorescence Tracking: Keeping a photo log of basement walls. The appearance of white, powdery salts indicates that moisture is moving through the concrete and evaporating on the inside.

• Sump Cycle Evaluation: Tracking how often the pump runs. An unexplained increase in cycle frequency suggests a change in the local water table or a failure in the exterior drainage plane.

Common Misconceptions Top Foundation Waterproofing Plans

1. “Tar is waterproofing”: Tar (asphalt damp-proofing) is a vapor retarder. It will not stop liquid water under pressure.

2. “French drains are enough”: A drain moves water, but it doesn’t stop the concrete from absorbing moisture via capillary action.

3. “Internal waterproofing is better”: Internal systems are “water management,” not “waterproofing.” They allow the wall to get wet and then catch the water. True waterproofing happens on the outside.

4. “New concrete is waterproof”: Concrete is a porous material that naturally develops micro-cracks during the curing process.

Synthesis: The Editorial Judgment

The selection and execution of top foundation waterproofing plans represent the most critical “insurance policy” a property owner can hold. While the subterranean components of a building are invisible, their failure is catastrophic, both financially and structurally. A truly authoritative plan recognizes that water is the ultimate solvent; it is patient and persistent. Therefore, the most successful strategies are those that do not merely “block” water but “respect” it—providing it with a path of least resistance away from the structure through robust drainage planes and high-elasticity barriers. In the hierarchy of construction costs, waterproofing is the one area where “over-engineering” is not a luxury, but a fundamental necessity for generational building health.
