The Subterranean Equilibrium: Reengineering the American Crawl Space for Atmospheric Control

Best foundation waterproofing for crawl spaces the crawl space, perhaps the most misunderstood structural element in American residential architecture, functions as the critical interface between the inhabited building envelope and the raw geological substrate. By installing perimeter vents, architects aimed to allow air to circulate, theoretically drying out any moisture that migrated from the soil. However, in most North American climates, this practice achieved the opposite, inviting humid exterior air to condense against cooler structural members, leading to a systemic cycle of wood rot, fungal proliferation, and degraded indoor air quality.

To address the moisture load of these spaces, we must move beyond the antiquated concept of “breathability” and embrace the modern discipline of encapsulation and hydrological exclusion. A crawl space is not merely a service corridor for plumbing and electrical lines; it is a thermal and atmospheric plenum that directly influences the health of the entire structure. When a crawl space remains damp, the stack effect—the natural movement of air from the bottom of a house to the top—transfers soil gases, mold spores, and excess humidity into the living quarters. Consequently, moisture management in this zone is as much a matter of public health as it is of structural preservation.

Achieving a permanent state of dryness requires a multi-faceted engineering approach that addresses both liquid water intrusion and vapor diffusion. This involves a rigorous assessment of site-specific hydrology, soil capillary action, and the thermal dynamics of the floor assembly. The objective is to decouple the house from the earth, creating a managed environment that remains indifferent to external weather events or high water tables. This article provides a definitive analysis of the materials, strategies, and conceptual frameworks required to implement the highest standard of moisture defense for crawl space foundations.

Understanding “Best Foundation Waterproofing for Crawl Spaces”

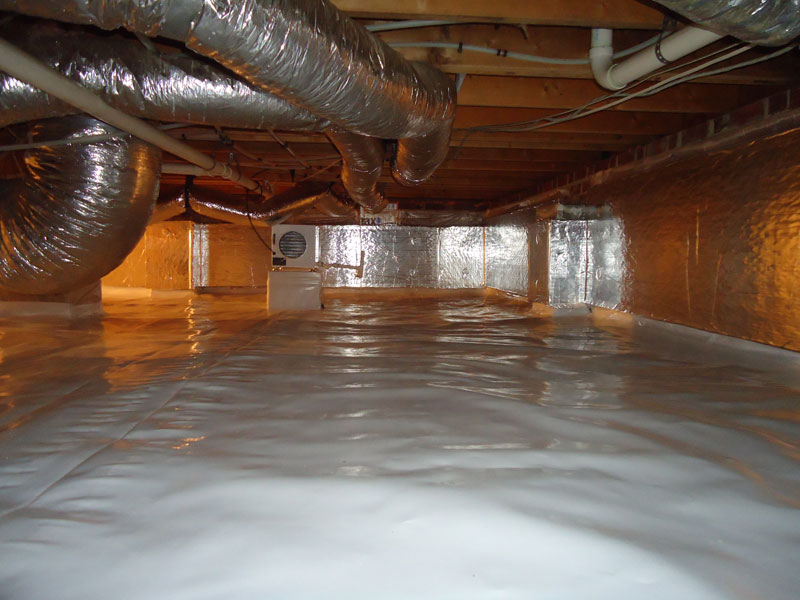

In contemporary structural engineering, the best foundation waterproofing for crawl spaces refers to a comprehensive “encapsulation” system rather than a single topical application. While “waterproofing” in a basement often focuses on the exterior face of the wall, crawl space moisture management is unique because it must address the exposed earth floor as the primary source of vapor. A top-tier plan does not merely stop liquid leaks; it creates a six-sided, air-tight seal that isolates the structure from the soil’s constant off-gassing and hygroscopic nature.

A common misunderstanding in this domain is the reliance on thin “vapor barriers.”In a high-saturation environment, this is functionally insufficient. This transforms the crawl space from a “dirt hole” into a clean, conditioned vault.

The risk of oversimplification often leads to a failure in addressing the “drainage plane.” Simply covering the ground with plastic does nothing to mitigate hydrostatic pressure. If a site has a high water table or poor exterior drainage, water will eventually collect underneath the liner, creating a subterranean pond that can shift the barrier or lead to stagnation.

The Evolution of the Managed Plenum

Best foundation waterproofing for crawl spaces the American crawl space has undergone a radical conceptual shift over the last half-century. In the post-war housing boom, crawl spaces were the “economical” alternative to full basements, but they were built with little regard for building science. The prevailing wisdom dictated that vents should be opened in the summer to “dry things out” and closed in the winter to “keep things warm.” Building science has since proven that opening vents in the summer only imports humidity, which hits the cool 55-degree earth and condenses, saturating the floor joists.

The transition toward “closed” or “conditioned” crawl spaces began in earnest in the early 2000s, catalyzed by research from organizations like Advanced Energy and various Department of Energy initiatives. This research demonstrated that by sealing the vents and insulating the foundation walls rather than the floor joists, homeowners could reduce energy consumption by up to 20% while simultaneously eliminating the conditions required for wood-decay fungi.

Conceptual Frameworks and Mental Models

To evaluate crawl space integrity, we utilize several engineering mental models:

• The Stack Effect Model: This framework recognizes that a house acts like a chimney. Warm air rises and escapes through the attic, creating negative pressure at the bottom. This sucks air from the crawl space into the living area. Therefore, any moisture or gas in the crawl space will enter the home.

• The “Zero-Exposed-Earth” Principle: This model posits that as long as a single square inch of soil is exposed to the crawl space atmosphere, the space is not waterproofed. Soil is a 100% relative humidity environment; exposure ensures the air will always be saturated.

• The Condensation Point Analysis: This model focuses on the “Dew Point.” By insulating the exterior walls and sealing the vents, we keep the crawl space air above the dew point of the structural wood, preventing the “invisible rain” of condensation.

Key Categories of Crawl Space Defense Systems

Managing a crawl space foundation requires selecting a system that matches the geological threat level of the site.

Decision Logic: Encapsulated vs. Conditioned

The logic for most high-authority builds favors the “Conditioned Encapsulation.” This means the space is not only sealed from the outside but also has a dedicated source of dry air—either through a dehumidifier or a small supply of HVAC air—to maintain a constant relative humidity below 55%.

Real-World Scenarios and Decision Logic Best Foundation Waterproofing For Crawl Spaces

Scenario A: The Low-Lying Coastal Site

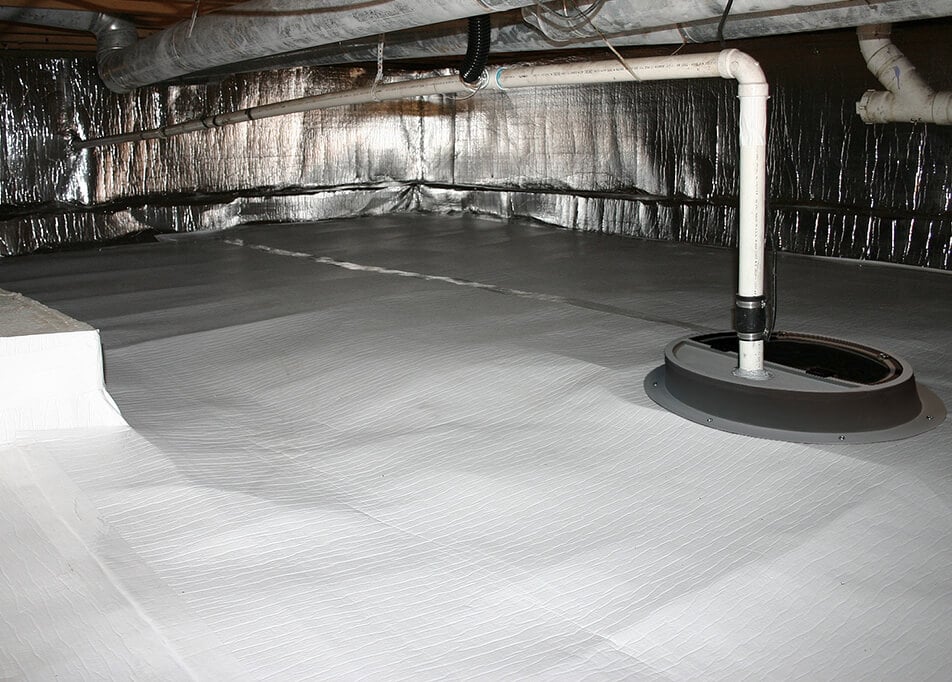

In areas with high water tables, the crawl space floor may be below the seasonal water line. The decision logic here requires a “sub-liner drainage system.” This involves laying a dimpled plastic matting over the entire soil floor before the 20-mil vapor liner is installed. This matting creates a “quilted” channel that allows water to move freely beneath the liner toward a sump pump, preventing the liner from “floating.”

Scenario B: The Rocky Terrain (Appalachia/Ozarks)

When a crawl space is built over jagged rock or shale, a standard liner will be punctured immediately. The logic dictates a “sacrificial layer.” A non-woven geotextile fabric is laid down first to act as a cushion, followed by the high-performance liner. This protects the integrity of the vapor seal against the abrasive substrate.

Planning, Cost, and Resource Dynamics

Crawl space waterproofing is an investment in the “structural longevity” of the home. While the initial costs may seem high for an “unseen” area, the cost of remediating a rotted floor system is often triple the cost of encapsulation.

• Direct Costs: High-mil liners, specialized sealants, mechanical fasteners, and professional-grade dehumidifiers.

• Indirect Costs: Debris removal.

• Opportunity Cost: An unsealed crawl space can lower a home’s value by 5–10% during a structural inspection, whereas an encapsulated space is often marketed as a premium asset.

Tools, Strategies, and Support Systems

Executing the best foundation waterproofing for crawl spaces requires a specialized set of installation protocols:

1. Industrial Dehumidification: Not a “big box” unit, but a high-capacity, low-temperature unit designed for subterranean environments.

2. Foundation Pins: Using mechanical fasteners rather than just adhesive to ensure the wall liner doesn’t peel off over time.

3. Spray Foam Rim Joist Sealing: Addressing the “sill plate” area where the wood frame meets the masonry—a major source of air leakage.

4. Hygrometer Telematics: Remote sensors that allow the homeowner to monitor crawl space humidity from a smartphone.

5. Smart Sump Alarms: WiFi-enabled alarms that notify the owner if the pump has failed or the water level is rising.

6. Internal Perimeter Drains: “SmartPipe” systems designed to sit on top of the footer to avoid undermining the foundation’s structural integrity.

Risk Landscape and Failure Modes Best Foundation Waterproofing For Crawl Spaces

The primary risk in crawl space waterproofing is the “Hidden Leak.” If a plumbing pipe breaks above the liner, the water will pool on top of the plastic, potentially going unnoticed for months.

Taxonomy of Risks:

• Mechanical Failure: A dehumidifier that stops working can lead to a rapid spike in humidity, causing a “flash bloom” of mold in as little as 48 hours.

• Installation Oversight: Failing to seal the “piers”—the interior supports—allows vapor to bypass the floor liner.

• Structural Undermining: Inexperienced crews digging a perimeter trench too deep, which can cause the foundation footing to settle or “blow out.”

Governance, Maintenance, and Long-Term Adaptation

An encapsulated crawl space is a managed environment that requires a “Governance Protocol”:

• Annual Liner Inspection: Checking for punctures caused by pests or service technicians (plumbers/electricians).

• Sump Basin Review: Testing the float switch and clearing any silt that has bypassed the filter fabric.

Measurement, Tracking, and Evaluation Best Foundation Waterproofing For Crawl Spaces

Efficacy is measured through three key indicators:

1. Relative Humidity (RH) Delta: The crawl space should maintain an RH between 45% and 55% regardless of the external weather.

2. Wood Moisture Content (WMC): Using a moisture meter to ensure the floor joists remain below 12% moisture. Wood-decay fungi cannot grow below 19% WMC.

3. Odor Neutrality: A properly waterproofed crawl space should have no discernible smell. A “musty” or “earthy” odor is a qualitative signal of a vapor breach.

Common Misconceptions and Industry Myths

• Myth: “Crawl spaces need to breathe.” Reality: “Breathing” is just another word for “condensing.” In modern building science, we control the air; we don’t let it drift.

• Myth: “6-mil plastic is enough.” It is a “moisture retarder,” not a waterproofing system.

• Myth: “Fiberglass insulation under the floor is good.” Reality: Fiberglass acts like a sponge, holding moisture against the wood and eventually falling out due to the weight of the water.

• Myth: “I don’t need a dehumidifier if I seal it.” Reality: Even with a perfect seal, moisture can enter from the house above or through minor masonry seepage. A dehumidifier is the “insurance policy.”

• Myth: “Encapsulation is just for wet crawl spaces.” Reality: Every crawl space with a dirt floor is a source of humidity and soil gases like radon, regardless of whether there is standing water.

• Myth: “Closing the vents causes radon buildup.” Reality: A properly sealed 20-mil liner is actually one of the most effective radon mitigation strategies, as it blocks the gas at the source.

Conclusion Best Foundation Waterproofing For Crawl Spaces

The pursuit of the best foundation waterproofing for crawl spaces is a transition from passive neglect to active management. By acknowledging that the earth is a permanent source of moisture and that concrete is a porous medium, we can design systems that effectively decouple the human habitat from the geological substrate. A dry crawl space is a foundational requirement for a healthy home, ensuring that the structural skeleton remains sound and the indoor air remains pure.
