The Hydrological Siege: A Critical Inquiry into Subterranean Moisture Defense

Common foundation waterproofing mistakes structural longevity is fundamentally a contest against the relentless movement of subterranean water. While the visible components of a building—its cladding, fenestration, and roof—receive the majority of maintenance attention, the subterranean envelope is where the most consequential structural degradations often take root. The transition of a basement from a damp mechanical vault to a high-value living space has intensified the need for absolute moisture exclusion, yet the industry remains plagued by legacy techniques that fail to account for modern soil physics.

Water management is not a singular event but a systemic negotiation with site-specific variables: hydrostatic pressure, capillary rise, and vapor drive. In many American climatic zones, the soil acts as a massive capacitor for moisture, storing and releasing hydraulic energy against foundation walls. It is a systemic compromise that leads to the oxidation of steel reinforcements, the degradation of concrete alkalinity, and the introduction of microbial colonies that undermine the respiratory health of the entire structure.

To master the art of the dry basement, one must move beyond the superficial application of sealants. True waterproofing is an integrated discipline that combines geotechnical analysis, material science, and hydraulic engineering. The prevalence of failure in this sector is not usually due to a lack of available technology, but rather a failure in the sequence and logic of application. This editorial inquiry explores the sophisticated layers of subterranean defense, identifying the critical points where standard practices fall short of professional engineering requirements.

Understanding “Common Foundation Waterproofing Mistakes”

A sophisticated understanding of common foundation waterproofing mistakes begins with the recognition that “damp-proofing” is not “waterproofing.” This is perhaps the most frequent point of failure in residential construction. Damp-proofing involves a thin, asphalt-based coating intended to resist the passage of water vapor or minor soil moisture. It is entirely incapable of resisting hydrostatic pressure—the force of standing water pushing against a wall. When builders apply a damp-proofing spray and market it as a waterproof solution, they are ignoring the physics of the water table, setting the stage for systemic intrusion during the first heavy rain cycle.

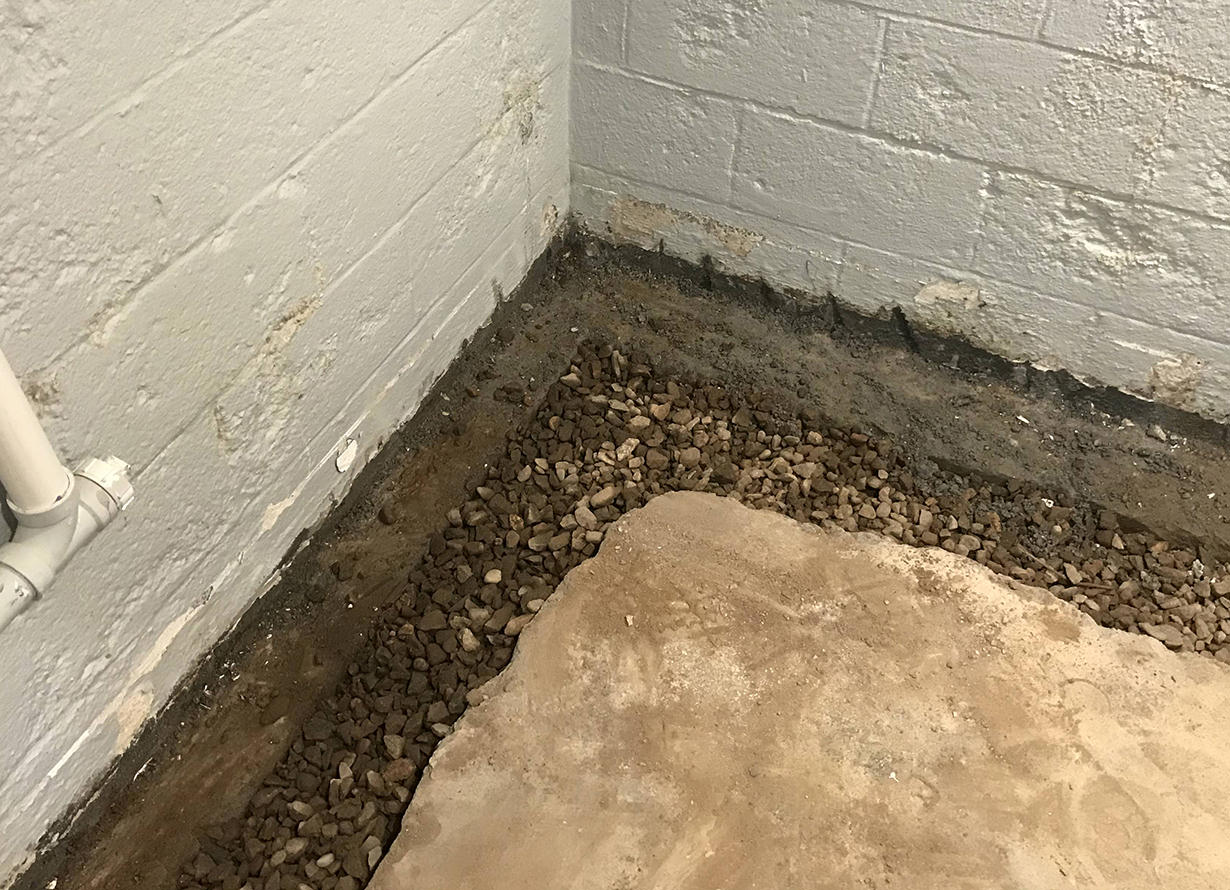

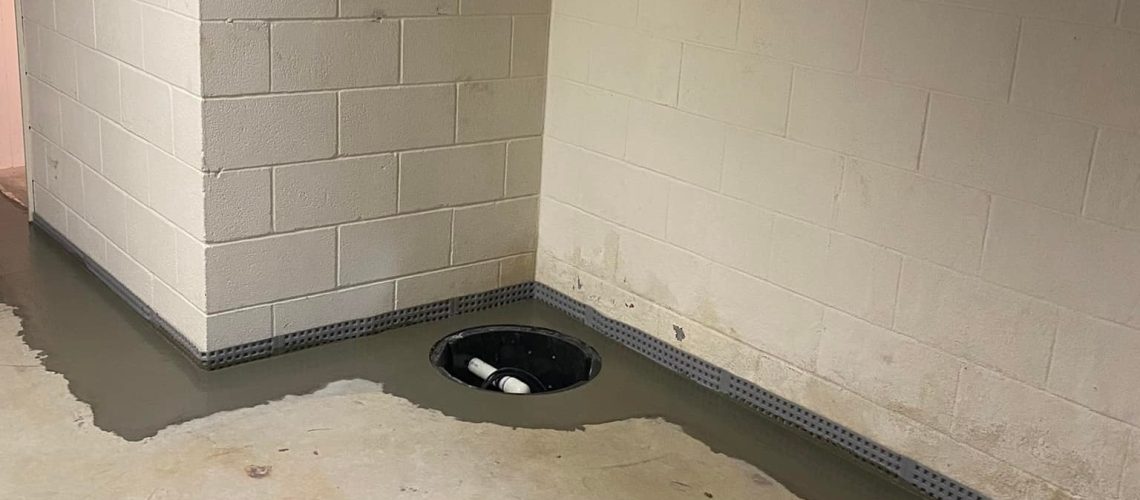

Another pervasive error lies in the over-reliance on interior “water control” systems at the expense of exterior “waterproofing” membranes. Interior drains and sump pumps are reactive; they manage water after it has already penetrated the structural wall. While these systems are effective at keeping a floor dry, they allow the foundation wall itself to remain saturated. This constant saturation triggers “efflorescence”—the leaching of minerals from the concrete—which eventually turns a solid wall into a brittle, crumbling mess. The mistake here is a failure of perspective: treating the symptom of water on the floor while ignoring the disease of water in the wall.

Oversimplification also manifests in the neglect of the “Cove Joint”—the critical junction where the vertical foundation wall meets the horizontal footer. Many installers fail to reinforce this joint with specialized water-stops or thick bituminous membranes, assuming that the standard wall coating will bridge the gap. In reality, the slight settling of a house often creates a hairline fracture at this joint, providing a high-pressure path for water to bypass the entire defense system.

Contextual Background: The Evolution of the Dry Envelope

Common foundation waterproofing mistakes the history of foundation protection in the United States tracks closely with our transition from stone-and-mortar footings to reinforced concrete slabs. Early 20th-century foundations were expected to be damp. These structures utilized “breathable” materials that allowed moisture to enter and evaporate. As we moved toward finished basements in the 1950s, the “tar and gravel” method became the standard. This was a rudimentary attempt to create a barrier, but the materials were brittle and lacked the “crack-bridging” capabilities required for dynamic soils.

The 1980s and 90s introduced the “dimple board” and rubberized asphalt membranes, marking a shift toward “drainage-focused” waterproofing. We realized that a barrier alone is insufficient; you must also provide a path for water to move away from the wall. Today, we are in the era of “Crystalline Waterproofing” and “Bentonite Clay” systems—technologies that are “active” rather than “passive.” These modern systems can self-heal or chemically react with water to close micro-fissures, reflecting a move toward multi-generational structural resilience.

Conceptual Frameworks and Mental Models Common Foundation Waterproofing Mistakes

To analyze the integrity of a subterranean envelope, engineers utilize several mental models:

• The “Hydrostatic Relief” Model: This model posits that you cannot fight the pressure of the earth; you can only relieve it. If you provide a path of zero resistance (a gravel-filled drainage plane), the water will follow that path rather than forcing its way through a microscopic crack in the concrete.

• The “Redundant Barrier” Framework: A philosophy that assumes any single layer will fail. A definitive system includes an adhesive membrane, a drainage board, and a functional footing tile, ensuring that if one component is compromised by a rock or a root, the system as a whole survives.

• The “Vapor Drive” Gradient: Understanding that moisture moves from high-pressure, warm areas to low-pressure, cool areas. In a basement, this means water is constantly trying to “push” into the conditioned space, driven by the laws of thermodynamics.

Key Categories of Waterproofing and Trade-offs

Selecting a system involves weighing material chemistry against the geotechnical risks of the site.

Decision Logic: The “Soil-Type” Filter

The logic of selection is often dictated by the soil’s percolation rate. In “Sandy” soils, a high-quality liquid-applied membrane may suffice because water drains quickly. In “Heavy Clay” or “Silt,” the logic mandates a Full Membrane System with a dedicated drainage board, as the soil will hold water against the foundation for weeks after a storm.

Detailed Real-World Scenarios and Decision Logic Common Foundation Waterproofing Mistakes

Scenario A: The New Build on a Steep Grade

A home is built into a hillside. The “uphill” wall is subject to immense pressure as rainwater flows down the slope. The decision logic dictates a “Blind-Side” waterproofing approach using bentonite mats, which are installed against the shoring before the concrete is poured. The failure mode in this scenario is usually the “hydrostatic surge” that occurs when the backfill isn’t properly compacted, creating a “pool” against the uphill wall.

Scenario B: The Retrofit of a Historic Stone Foundation

A 1920s home has a porous stone foundation. Applying a rigid membrane to the exterior is impossible without total excavation. The logic shifts to “Negative-Side” crystalline waterproofing. This material is applied to the inside and migrates through the stone to meet the water. The trade-off is that it cannot bridge large structural cracks, which must be addressed via epoxy injection first.

Planning, Cost, and Resource Dynamics

The fiscal reality of waterproofing is that the “Cost of Failure” is often 500% higher than the “Cost of Installation.”

• Direct Costs: High-performance membranes ($3.00–$6.00 per sq. ft.), excavation ($50–$150 per linear foot), and professional labor.

• Indirect Costs: Landscaping replacement, deck removal/reinstallation, and potential interior build-back costs.

• Opportunity Cost: Failing to install a premium system during the initial build. Excavating a foundation ten years later is three times more expensive than doing it during the initial “open-hole” phase of construction.

Tools, Strategies, and Support Systems

A definitive waterproofing strategy utilizes these critical support components:

1. Perforated Footing Tile: The “heart” of the system that collects water and leads it to the sump or daylight.

2. Filter Fabric (Geotextile): Preventing silt from clogging the drainage gravel—a common cause of system failure in 10–15 years.

3. Termination Bars: Mechanical strips that “lock” the top of the membrane to the wall, preventing it from sagging or allowing water to get “behind” it.

4. Hydrostatic Relief Valves: Used in high-water-table areas to allow pressure to bleed off into the drainage system.

5. Spray-Applied Primers: Ensuring that the dusty, porous surface of the concrete is chemically ready to bond with the membrane.

6. Water-Stops: Expanding rubber strips placed inside the cove joint during the pour.

7. Protection Boards: Buffer layers that prevent the heavy rocks in the backfill from puncturing the waterproof membrane.

Risk Landscape and Failure Modes Common Foundation Waterproofing Mistakes

Most common foundation waterproofing mistakes occur during the “Backfill” phase of construction.

• The “Frozen Footer”: Installing a footer pipe that has no “slope” or “pitch.” If the water can’t move to the sump, it sits in the pipe, saturates the soil, and eventually forces its way through the wall.

• The “Window Well” Trap: Failing to provide a dedicated drain for window wells. They act as “collection buckets” for rainwater, dumping it directly against the foundation’s mid-section.

• Compounding Risks: In areas with high “Iron Ochre” (a bacterial sludge), the footing pipes can clog entirely. Failure to include “Clean-out Ports” means the entire system becomes unserviceable in a decade.

Governance, Maintenance, and Long-Term Adaptation

Waterproofing is not “set and forget.” It requires an ongoing governance cycle:

• Annual Gutter Audit: Ensuring that 90% of the roof water isn’t being dumped within 3 feet of the foundation.

• Grading Review: Soil “subsides” over time. Every three years, an owner should ensure the soil still slopes away from the house (a 6-inch drop over 10 feet).

• Sump Pump Maintenance: The pump is the “escape hatch” for the waterproofing system. If it fails, the water has nowhere to go but back into the basement.

Measurement, Tracking, and Evaluation Common Foundation Waterproofing Mistakes

Efficacy is measured through both leading and lagging indicators:

1. Relative Humidity (RH) Differential: Comparing the humidity of the basement to the upstairs. A successful system keeps the basement within 10% of the living floor’s RH.

2. Sump Cycle Frequency: Tracking how often the pump runs. A “calm” pump during a storm indicates that the exterior grading and drainage are doing the heavy lifting.

3. Leading Indicator: Using a moisture meter on the interior concrete. If the “percentage of moisture” rises during a rain event, the exterior membrane has a breach.

Common Misconceptions and Industry Myths

• Myth: “A concrete wall is waterproof if it has no cracks.” Reality: Concrete is a porous sponge. Water moves through it via capillary action at a molecular level, even without visible fissures.

• Myth: “Gravel is all the drainage you need.” Reality: Gravel without a pipe is just a “well” that stores water next to your house.

• Myth: “Interior ‘waterproofing’ is just as good as exterior.” Reality: Interior systems are “Water Management,” not “Waterproofing.” The wall still gets wet and continues to degrade.

• Myth: “Tar is a waterproof coating.” Reality: Standard roofing tar becomes brittle and cracks within 2–3 years when buried in soil.

• Myth: “Waterproofing is only for basements.” Reality: Crawlspaces and slab-on-grade foundations require the same vapor and moisture protection to prevent mold and floor failure.

• Myth: “The warranty covers everything.”

Ethical, Practical, or Contextual Considerations

There is an ethical dimension to waterproofing that involves “Downstream Impacts.” When we “waterproof” a house by pumping water out to the street, we are contributing to municipal storm-sewer overflow. A high-authority approach considers “On-site Retention”—using rain gardens or dry wells to manage the water we’ve moved away from the foundation. Practically, the choice of materials matters; many older asphalt-based coatings leach chemicals into the soil, whereas modern HDPE and bentonite systems are significantly more inert and environmentally responsible.

Conclusion

The integrity of a building’s foundation is a reflection of how well it respects the local hydrology. Avoiding common foundation waterproofing mistakes is a process of acknowledging that water is a patient and persistent force. By prioritizing exterior membranes over interior patches, ensuring mechanical drainage via footing tiles, and maintaining a strict “pitch” away from the structure, a building can remain indifferent to the moisture of the earth.
