The Subterranean Hydrology of Structural Integrity: A Definitive Guide to Seepage Mitigation
How to manage foundation seepage the ingress of moisture through a building’s foundation is rarely a singular event; rather, it is the culmination of complex environmental pressures, material porousness, and gravitational forces. For the property owner or facilities manager, moisture appearing at the floor-to-wall junction or through the masonry lattice is often interpreted as a localized failure. In reality, foundation seepage is a systemic symptom of a disrupted hydrologic balance. When a structure is placed into the earth, it displaces a volume of soil and creates a potential reservoir for groundwater—a phenomenon known in building science as the “bowl effect.”
Effective management of this subterranean water pressure requires a departure from reactive, surface-level patches. To maintain a dry and stable basement or crawlspace, one must address the physics of hydrostatic pressure and the chemistry of capillary action. Moisture does not merely “leak” into a building; it is pushed by the weight of saturated soil or pulled by the microscopic tension within the concrete itself. Without a rigorous, analytical approach to these forces, the structural and biological health of the building remains at the mercy of the next high-intensity rainfall or seasonal thaw.
This exploration moves beyond the superficial to provide a flagship reference for the mitigation of groundwater infiltration. By examining the evolution of foundation materials and the sophisticated mechanical systems currently available to manage them, we establish a framework for long-term structural health. The goal is to transform the below-grade environment from a vulnerable liability into a controlled, conditioned, and resilient component of the building envelope.
How to Manage Foundation Seepage
Determining how to manage foundation seepage is a process that requires a multi-layered diagnostic approach. At its core, seepage is the slow movement of water through the pores of the foundation material or through small cracks that develop as a structure settles. Unlike a “flood,” which is often a catastrophic failure of mechanical systems or extreme weather, seepage is a persistent, entropic force. Managing it successfully involves identifying whether the moisture is coming from “above-grade” surface water or “below-grade” groundwater.
A common misunderstanding in residential and commercial maintenance is that interior sealants or “waterproofing paints” constitute a management strategy. In truth, these are secondary barriers that do nothing to alleviate the external pressure that drives the water. If the external hydrostatic pressure is high enough, internal coatings will eventually blister, peel, or simply trap moisture within the wall, accelerating the degradation of the masonry and reinforcement steel. A sophisticated management plan prioritizes “source control”—diverting water before it ever makes contact with the foundation.
Oversimplification in this field is dangerous. Many property owners assume that a single sump pump or a new set of gutters will permanently solve a dampness issue. However, high-authority management requires looking at the site’s “hydrologic footprint.” This includes the soil’s percolation rate, the depth of the frost line, and the integrity of the original footing drains. Effective management is the orchestration of these various factors into a redundant defense-in-depth system.
Deep Contextual Background: The Historical Architecture of Dryness
How to manage foundation seepage the history of foundation construction is a record of increasing human intolerance for moisture. Early foundations relied on mass and “breathability.” Fieldstone walls, often several feet thick and held together with lime mortar, were expected to absorb some moisture. This moisture would then evaporate into unconditioned cellars. While this system worked for utilitarian storage, it became obsolete as we transitioned to finished, conditioned living spaces in the mid-20th century.

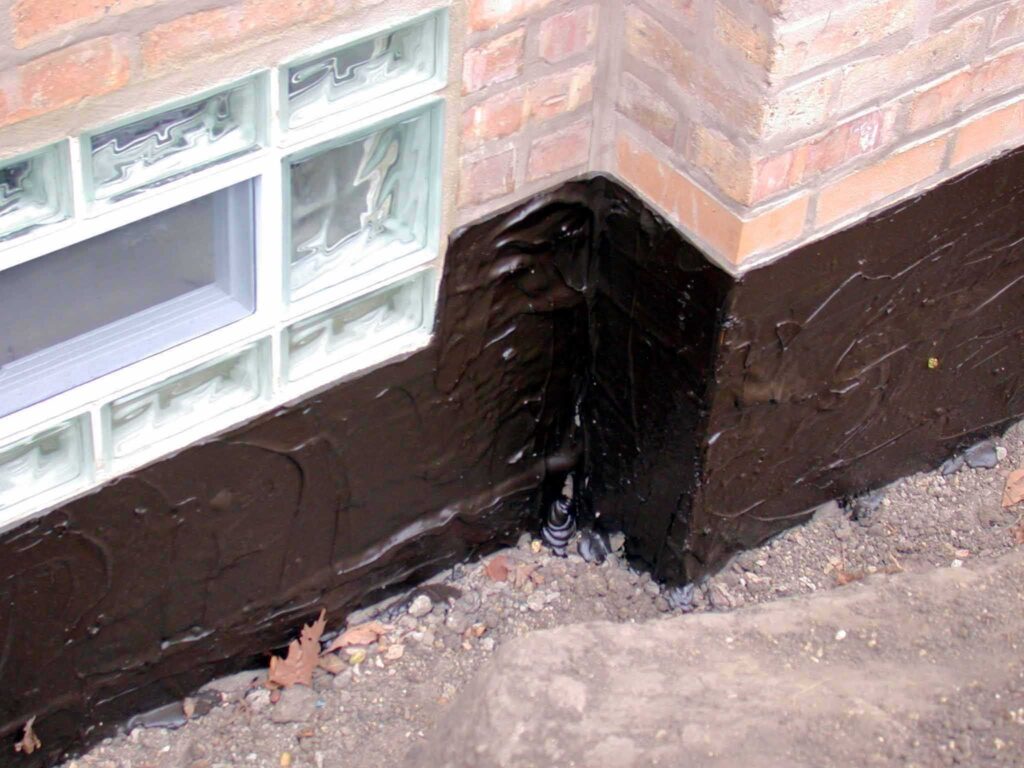

The introduction of poured concrete and concrete masonry units (CMU) provided greater structural efficiency but introduced a “rigid-sponge” problem. Concrete is a porous material that naturally develops micro-cracks during its curing cycle. By the 1960s and 70s, the standard response was “damp-proofing”—a thin coat of bituminous material sprayed on the exterior. While this met early building codes, it lacked the elasticity to bridge settling cracks and offered no protection against hydrostatic head pressure. Modern building science has since shifted toward high-performance elastomeric membranes and integrated drainage planes, reflecting a more nuanced understanding of how water interacts with the built environment over decades.
Conceptual Frameworks and Mental Models How To Manage Foundation Seepage
To evaluate a seepage problem, professional investigators often use specific mental models:
-
The Saturated Bowl Model: This framework views the backfill soil around a foundation as a bowl of loose earth within a larger field of compacted soil. During rain, the “bowl” fills faster than the surrounding earth can drain it, creating a column of water that exerts pressure against the wall.
-
The Capillary Break Theory: This model treats the foundation as a wick. Moisture can be pulled upward from the soil through the footing and into the wall via capillary action, even when there is no standing water. Management requires breaking this “suction” through physical or chemical barriers.
-
The Flow-of-Least-Resistance Framework: Water is a precision seeker of weakness. If a system manages 99% of the water but leaves a 1% gap at the pipe penetrations or the “cove joint” (where the floor meets the wall), that 1% will account for 100% of the seepage problem.
Key Categories of Seepage and Technical Variations
Seepage is categorized by its entry point and the force driving it. Managing these requires different tactical responses.
Realistic Decision Logic
If the seepage occurs only during a rainstorm and disappears shortly after, the management focus should be on Surface Drainage (gutters and grading). If the floor is damp for days or weeks after a storm, or if moisture appears during dry spells, the issue is Groundwater, necessitating mechanical evacuation via a sump system or an external “French” drain.
Detailed Real-World Scenarios How To Manage Foundation Seepage
Scenario A: The High-Clay Substrate A home built on heavy clay soil experiences seepage every spring. Because clay holds water like a sponge, the hydrostatic pressure remains high for months.
-
Management Decision: Installing an interior “drainage track” system. Attempting to excavate the exterior in heavy clay is often cost-prohibitive and risky; the interior track captures the water at the cove joint and directs it to a sump pit.
Scenario B: The Failed Gutter System A property owner notices water pooling at the base of the foundation. The interior wall shows dampness near the ceiling.
-
Management Decision: This is a classic “top-down” seepage issue. Extending downspouts ten feet away from the structure and clearing the gutters often eliminates 90% of the moisture without any below-grade intervention.
Scenario C: The Hydrostatic Floor Heave In a valley-bottom property, the basement floor begins to show hairline cracks with water bubbling up.
-
Management Decision: This indicates upward pressure from the water table. The only solution is the installation of a sub-slab drainage system to relieve the “buoyancy” of the water before it can crack the slab.
Planning, Cost, and Resource Dynamics
The economics of seepage management are defined by the “depth of intervention.”
Resource Variability: Costs fluctuate based on foundation depth, the presence of utility lines, and landscaping obstacles. The “cheapest” repair is often the most expensive over a 20-year horizon because it fails to address the underlying pressure, leading to repeated interior damage.
Strategic Tools and Technological Support Systems
-
Non-Abrasive Hydrostatic Relief Valves: Floor-mounted valves that allow water into the basement only when pressure becomes dangerous, preventing floor buckle.
-
Epoxy vs. Polyurethane Injections: Epoxy provides structural strength; polyurethane provides a flexible, water-tight seal that expands into the crack.
-
Hygrometers and Moisture Sensors: Digital tracking of relative humidity (RH) to identify vapor seepage before it becomes liquid.
-
Crystalline Waterproofing Admixtures: Chemicals that react with incoming water to grow crystals inside the concrete pores, sealing them from within.
-

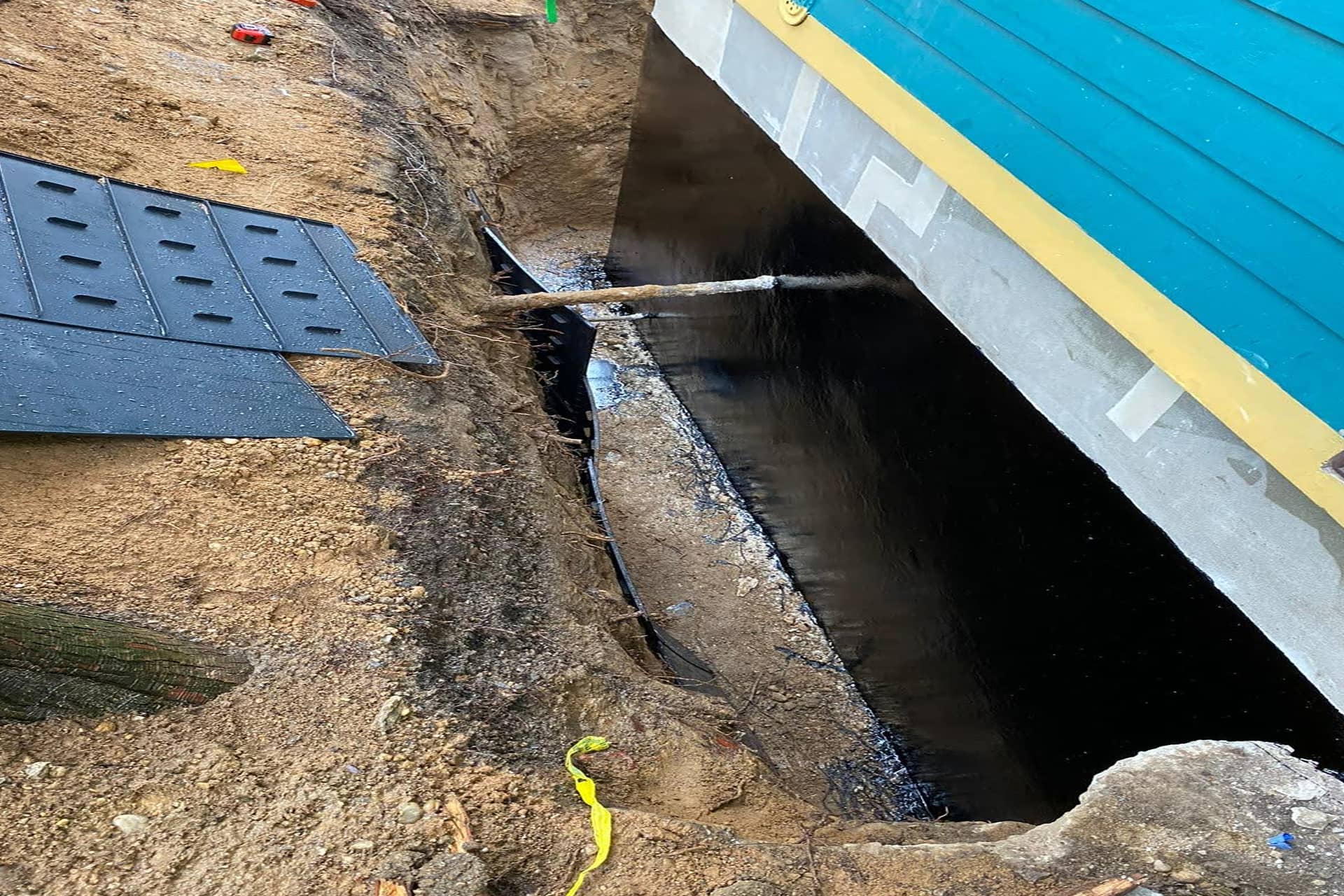

Dimpled Drainage Membranes: Exterior boards that provide an “air gap” against the wall, allowing water to fall freely to the footing drain.
-
Dual-Pump Sump Systems: A primary AC pump paired with a battery-operated secondary pump for redundancy during storm-related power outages.
Risk Landscape and Failure Modes How To Manage Foundation Seepage
The “Risk Taxonomy” of foundation management includes several compounding factors:
-
The Adhesion Failure: Applying sealants to a wet wall. The sealant will eventually “bubble” and fail as vapor pressure builds behind it.
-
The Silt Failure: A French drain that is installed without a filter-fabric wrap will eventually clog with fine soil particles, becoming a “pipe filled with mud.”
-
The Structural Compromise: Ignoring seepage in a CMU (block) wall. Water can fill the hollow cores of the blocks, freezing in winter and causing the wall to bow or “blow out” under the expansion force.
-
Secondary Biological Risk: Mold spores thrive in the 60%+ RH levels common in seeping basements. Management of the water is also management of the air quality.
Governance, Maintenance, and Long-Term Adaptation
A dry foundation is not a static achievement; it is a managed state.
-
Review Cycles: Inspect the foundation interior and the exterior grading twice a year (Spring/Fall).
-
Monitoring: Track sump pump cycle frequency. An unexplained increase in pumping may indicate a shift in the local water table or a municipal pipe leak.
-
Adjustment Triggers: If interior RH exceeds 55% for more than three consecutive days, it is time to inspect for vapor seepage or foundation “wicking.”
-
Layered Checklist:
-
Are gutters clear?
-
Do downspouts extend 10+ feet?
-
Is the sump pump’s “float switch” unencumbered?
-
Are there new cracks larger than 1/8 inch?
-
Measurement, Tracking, and Evaluation How To Manage Foundation Seepage
-
Leading Indicators: Increasing humidity levels, musty smells, or peeling paint at the floor line.
-
Lagging Indicators: Visible standing water, mold on baseboards, or a sump pump that has stopped making noise.
-
Documentation Examples: Keep a “Basement Log” with photos of corner joints taken every March. Documentation is critical for insurance claims and property resale disclosures.
Common Misconceptions
-
“Concrete is waterproof”: False. Concrete is a porous, mineral-based sponge.
-
“Waterproofing paint fixes seepage”: False. It is a cosmetic treatment that eventually peels under hydrostatic pressure.
-
“The house didn’t leak for 20 years, so it won’t now”: Soils shift, footing drains clog, and materials degrade. Past performance is no guarantee of future dryness.
-
“All cracks are bad”: Minor “hairline” shrinkage cracks are common and often dry; wide “stair-step” cracks in block walls indicate structural stress.
Synthesis: The Editorial Judgment How To Manage Foundation Seepage
In the final assessment, the endeavor of how to manage foundation seepage is a commitment to the discipline of building science. It requires a rejection of “quick fixes” in favor of a holistic understanding of how a building sits within its environment. The most resilient structures are those where water is respected as a persistent force and provided with a clear, unobstructed path of least resistance away from the foundation. Success is measured not by the absence of rain, but by the invisibility of its passage through the drainage systems we have constructed. Effective management is the silent, ongoing victory of engineering over entropy.
